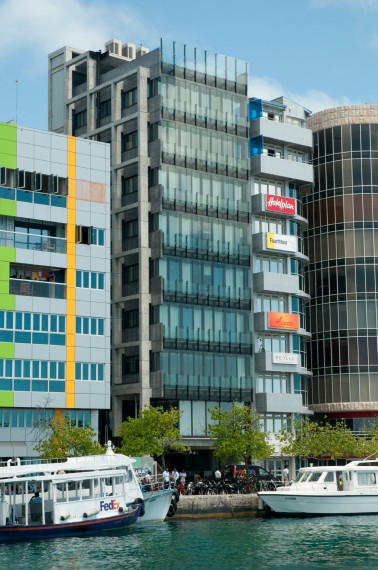

The Cyprea is a 9-storey office complex; architectural design done by Mooinc pvt ltd, structural design by Mr. Mohamed Ahsan (Hyarch pvt ltd) and mechanical and electrical done by Susil Weddikkara Associates (Sri Lanka). The project manager Civeng pvt ltd compiled an appropriate construction agreement based on information available at the time and managed the project to deliver on time as per quality standards specified by the designers and client. The design approach in this project was to engage with the client in programming the space to achieve an efficient spacial model for a very difficult, spatially restricted site on a prominent promenade in the middle of financial and commercial district of Male’.

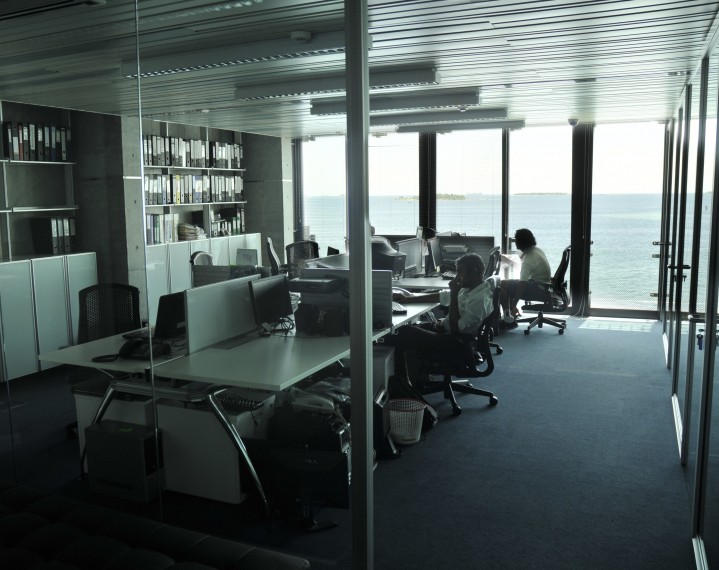

Having arrived at an efficient spatial program, the approach was to design from inside out, the basic premise being to motivate and contribute to a healthy work environment for every individual. The result was the elimination of intermediate structure to achieve panoramic view and allow maximum day lighting. A ventilated brise soleil facade system was designed to negate excessive radiation and reduce air conditioning load. Intelligent system was incorporated into the lighting design to allow automated daylight compensation.

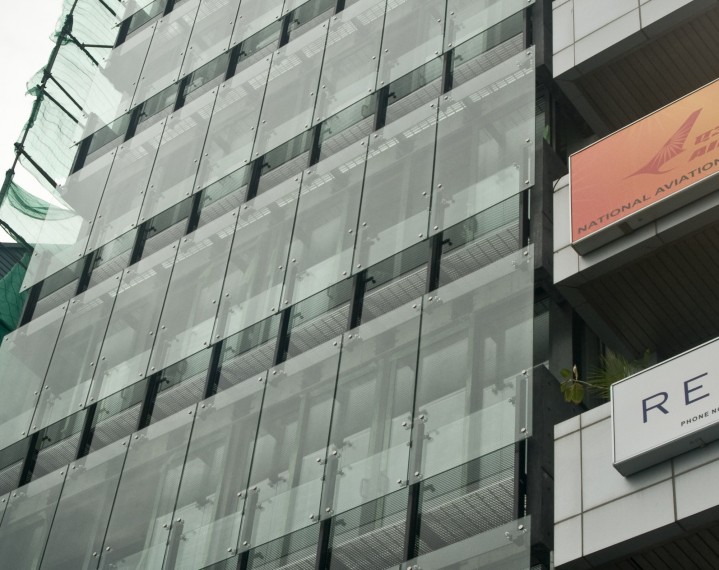

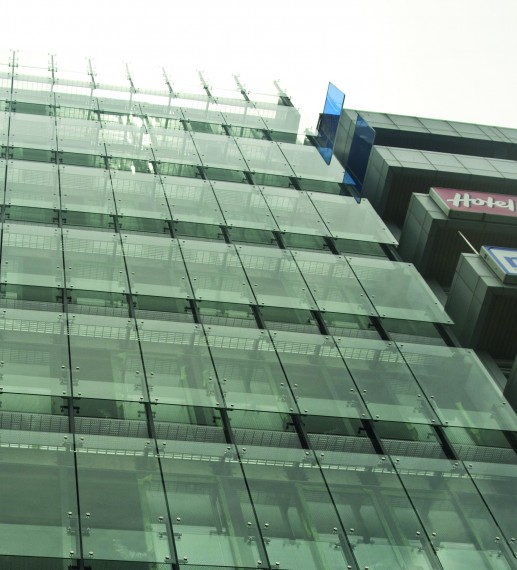

Civeng managed the project construction and delivered the project to the satisfaction of the architect as well to the client. Although the building footprint is small, the building had elements such as double layered glass facade its installation method was using a Halfen prefabricated pre-engineered channels. Glass used was tempered laminated to satisfy the safety requirements. Other features such as, fair face concree for aesthetic and maintenance, metal ceiling system with acoustic properties, raise floor for flexibility in use, central air-conditioning system for efficient cooling, lighting control system for energy efficiency, high speed lift for convenience, emergency generator for support in the breakdown situation, access control and cctv monitoring for security.



Building data
Height: 09 storey
Site Area: 1000 sqft

Location: Male’, Maldives
Year: 2008
Client: Cyprea Pvt Ltd.
